GBIC >> Freeware >> gbStereogram
gbStereogram
gbStereogram quickly and easily generates stereograms. It can generate random dot stereograms (SIRDS) and tiled/textured (SIS) stereograms (stereograms with background images rather than random dots).

See my Stereogram Information Center for background information on stereograms.

gbAnimator key features include:
  • Text, random dot, and textured stereograms
  • Built-in browser for texture and depth mask selection
  • Oversampling
  • Multiple algorithms
  • Shimmering (viewing aide)
  • Save image (multiple formats)
  • Online update

Download (ver 1.0, 0.5M) (available 7 May 2006)


Return to top of document

Overview

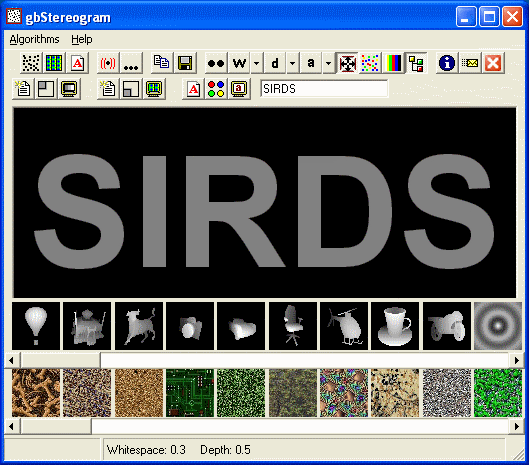

gbStereogram provides a very easy way to create stereograms. A depth mask file or text string may be used to generate a single image random dot stereogram (SIRDS). Either black and white, or colored dots backgrounds are supported. An image file may also be used as the background to create a single image stereogram (SIS).

gbStereogram comes with a built-in browser for displaying folders of depth masks and texture files. A depth mask and/or texture may be selected from the browser to use in creating a stereogram.

Users may also enter a text string, which gbStereogram will convert to a depth mask for use in generating a stereogram.

At any time, windows containing the selected depth mask and selected texture may be displayed over the output picturebox. The depth mask is displayed in the upper left hand corner and the texture image is displayed in the lower right corner. The depth mask and texture image may also be displayed at any time directly within the output picturebox.

Several global properties of the stereogram may be set, including whitespace, depth, and oversampling.

For users who have a difficult time viewing stereograms, gbStereogram supports two viewing aides - convergence marsk and shimmering.

1. Convergence marks are simply two large dots placed in the stereogram. When the stereogram is viewed correctly, three dots can be seen.

2. Multiple images of the stereogram can be created, then displayed in rapid succession to form a stereogram animation. This is called "shimmering". Shimmering helps many users correctly view the stereogram. This applies to random dot stereograms only.



Return to top of document

Toolbar Options


The following functions are available on the top toolbar:
  • Random Dot Stereogram
    generate a random dot stereogram
  • Textured Stereogram
    generate a textured stereogram
  • Text Stereogram
    generate text stereogram
  • Shimmer
    generates shimmer images and starts shimmer slideshow
  • Continue Shimmer
    continues shimmer slideshow using most recently generated shimmer iamges
  • Copy
    copies output picturebox image to clipboard
  • Save
    saves output picturebox image as BMP file
  • Convergence Marks
    displays convergence marks
  • Whitespace
    set whitespace percentage
  • Depth
    set depth percentage
  • Oversampling
    set oversampling level
  • Full Screen
    displays depth masks, textures and stereograms size to fill the output picturebox
  • Color
    use colored dots in random dot stereograms
  • Gradient
    use gradient when colored dots are used
  • Browser
    display depth mask and texture browser
  • Information
    display message box with current settings
  • Email Author
    open default email client pre-addressed to gbStereogram author
  • Exit
    close gbStereogram


The following functions are available on the bottom toolbar:

  • New Depth Mask
    select a depth mask file
  • Display Depth Mask Window
    displays depth mask in upper left hand corner of display
  • Display Depth Mask
    displays depth mask in output picturebox
  • New Texture
    select a texture file
  • Display Texture Window
    displays texture in upper left hand corner of display
  • Display Texture
    displays texture in output picturebox
  • Font
    select font properties
  • Font Color
    select font color
  • Display Text
    display stereogram text in output picturebox
  • Stereogram Text
    enter text to be use in generating a text stereogram


Return to top of document

Menu Options

gbStereogram provides Algorithm and Help menu selections.

The Algorithm menu offers the following selections.

  • Thimbleley
    algorithms will be based on work published by Thimbleley
  • Steer
    algorithms will be based on work published by Steer
  • Basic
    uses simplest algorithm
  • Basic + Smart Links
    adds intelligent link selection to basic algorithm
  • Basic + Smart Links + Hidden Surface Removal
    adds intelligent link selection and hidden surface removal to basic algorithm
  • Compact
    Removes all blank lines. Also removes leading/trailing spaces from all lines.
  • Backup
    Creates a backup copy of all 3 files. The backup are given the extension ".old".
  • Restore
    The backup copy of all 3 files is used to copy over the current version of the files

The Help menu offers the following selections.

  • Email Author
    Opens default web client with email addressed to gbStereogram author
  • Online Help
    Opens the default browser at the gbStereogram Online Help page.
  • Online Update
    Opens a dialog window from which the latest version of gbStereogram can be downloaded.
  • About
    Shows the revision level of the installed version of gbStereogram

Change History
